An activity is the fundamental element of a workflow, and represents a unit of work to be performed by an action officer, usually within a defined time period More...

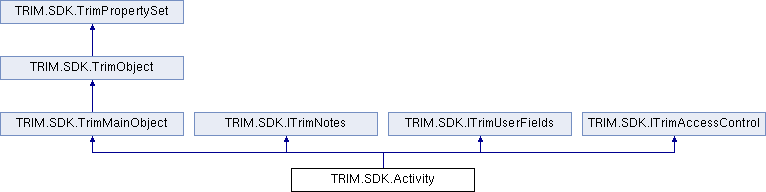

Inheritance diagram for TRIM.SDK.Activity:

Public Member Functions
	Activity ()
	Constructor for the Activity object, based on a supplied unique row identifier. More...

	Activity (Database db, long activityUri)
	Constructor for the Activity object, based on a supplied unique row identifier. More...

	Activity (Database db, TrimURI activityUri)
	Constructor for the Activity object based on a value for the activityName property. More...

	Activity (Database db, string activityName)

Activity	NewSubActivity ()
	Creates a new activity to be a sub-activity of this activity More...

Activity	FindSubActivityById (int lookForActivityID, bool searchRecursively)
	Gets a subordinate activity of this activity based on the activity ID. More...

Activity	FindSubActivityByName (string lookForActivityName, bool searchRecursively)
	Get a subordinate activity of this activity based on the name of that activity. Returns the first activity encountered with a matching name. More...

Activity	GetSubActivity (int activityIndex)
	Get a sub activity within this activity with the supplied index. More...

void	Start ()
	Indicates that work has commenced on this activity More...

void	Complete ()
	Completes this activity. You must have preset any completion result, and attached records to any document placeholders as appropriate More...

void	Rollback (int activityIdToRollbackTo, string reasonForRollback)
	Reverts workflow processing back to a preceding activity, resetting completed state to incomplete for all activities involved More...

void	Uncomplete (string reasonForSettingIncomplete)
	Reverts this activity back to an uncompleted state - also used for rejecting an authorization More...

void	Authorize ()
	Authorizes the completion of this activity More...

void	Reject (string reasonForRejection)
	Rejects the authorization of this activity More...

void	Acquire ()
	Acquires this activity by assigning it to the currenlt logged in user More...

void	Relinquish ()
	Resets the assignee of this activity back to its original assignee More...

void	Reassign (Location newAssignee)
	Reassigns this activity to the nominated user More...

void	Suspend (string reasonForSuspension, long durationOfSuspension)
	Suspends work on this activity for the nominated duration - usually required when waiting for outside input. More...

void	Resume ()
	Reverts an activity back from a suspended state More...

override void	Save ()
	Permanently commits all changes made to this object (and all its child objects). For new objects a new unique identifier will be allocated (Uri). More...

override void	Delete ()
	Permanently removes this object and all its associated child objects from the database. More...

void	SetNotes (string newValue, NotesUpdateType TypeOfNotesUpdate)
	Updates the notes attached to this object. Typically used when a new contibution is to be combined with the existing notes, as some users only have the privilige to add to the notes, rather than overwriting them. More...

UserFieldValue	GetFieldValue (FieldDefinition userFieldType)
	Gets the value of the nominated user-defined field for this object. More...

void	SetFieldValue (FieldDefinition userFieldType, UserFieldValue newValue)
	Sets the value of the nominated user-defined field for this object. More...

string	GetFieldValueAsString (FieldDefinition userFieldType, StringDisplayType fieldValueStringType, bool useHTMLEscapeChars)
	Gets a string representation of a user-defined field value in a format appropriate for a specific use. More...

Public Member Functions inherited from TRIM.SDK.TrimMainObject
string	MakeReference (string SuggestName)
	Creates a TRIM reference file for this object, given the path and filename. A reference file can be associated with the Open command of various of the TRIM executables - TRIM.exe, TRIMDesktop.exe, etc. When the reference file is double-clicked, the associated application will then launch (or activate if it already running) and the object will then be displayed inside that executable. Returns a string containing the path and filename of the reference file created. More...

bool	IsDeleteOk ()
	Determines if this object can be deleted. If it returns false, check the ErrorMessage details for more information. It is possible that the ErrorMessage property could contain a warning message even though the function returns true. More...

bool	Verify (bool failOnWarning)
	Verifies all properties that have been modified since this object was last saved. Returns a Boolean value indicating whether the function succeeded. If false, the error description is stored in the ErrorMessage property. More...

TrimChildObjectList	GetChildObjectList (BaseObjectTypes childType)
	Retrieves the child object collection of the nominated child object type. More...

TrimMainObject	GetNewCopy ()
	Creates a new TrimMainObject which is a copy of this TrimMainObject. Where appropriate, property values are copied from this TrimMainObject to the new TrimMainObject. You will generally need to set any unique properties manually afterwards, prior to committing this new TrimMainObject to the TRIM database with the Save() method. See also the NewCopy function of the derived objects that implement this capability. Will return NULL if this object does not support the Copy function. More...

virtual void	Refresh ()
	Resets this object to the current state on the database, will revert any changes that might have been made. Only required if you are not using BOBnotifications, or need to guarantee a really up-to-date version of the object state. More...

virtual void	Reindex (bool doWordIndex, bool doAdditionalFields, bool doContentEngine)
	Sends an indexing request to the event processor to update main text index on the object, indexes for additional fields or indexes for the content engine. More...

Public Member Functions inherited from TRIM.SDK.TrimObject
bool	IsMandatory (FieldDefinition field)
	Gets a boolean value indication whether the specified field must have a non-NULL value for this object. More...

bool	IsValidFor (int purpose)
	Call this method to determine if this object can be used for the nominated purpose. To determine what the valid purposes are, look in the derived class at the more type safe versions of this function. More...

bool	IsValidFor (int purpose, TrimMainObject purposeExtraObject)
	Call this method to determine if this object can be used for the nominated purpose. To determine what the valid purposes are, look in the derived class at the more type safe versions of this function. The purposeExtraObject is necessary for some purpose types - once again, the derived class will have more information. More...

bool	IsValidFor (int purpose, int purposeExtraEnumValue)
	Call this method to determine if this object can be used for the nominated purpose. To determine what the valid purposes are, look in the derived class at the more type safe versions of this function. The purposeExtraInformation is necessary for some purpose types - once again, the derived class will have more information. More...

bool	HasPermission (GenericPermissions prm)
	Checks to see if the currently logged in user has permission to perform the generic action on this object More...

bool	HasPropertyPermission (GenericPermissions prm, PropertyIds propId)
	Checks to see if the currently logged in user has permission to perform the generic action on the specified property of this object More...

Public Member Functions inherited from TRIM.SDK.TrimPropertySet
TrimIcon	GetPropertyIcon (PropertyIds propertyId)
	Gets the icon value associated the a property of this object. More...

TrimMainObject	GetPropertyTrimObject (PropertyIds dnPropId)

string	GetPropertyString (PropertyIds dnPropId)

int	GetPropertyLong (PropertyIds dnPropId)

long	GetPropertyLong64 (PropertyIds dnPropId)

bool	GetPropertyBool (PropertyIds dnPropId)

TrimDateTime	GetPropertyDate (PropertyIds dnPropId)

TrimDecimal	GetPropertyDecimal (PropertyIds dnPropId)

TrimCurrency	GetPropertyCurrency (PropertyIds dnPropId)

TrimURI	GetPropertyUri (PropertyIds dnPropId)

bool	SetPropertyTrimObject (PropertyIds dnPropId, TrimMainObject newValue)

bool	SetPropertyString (PropertyIds dnPropId, string newValue)

bool	SetPropertyLong (PropertyIds dnPropId, int newValue)

bool	SetPropertyLong64 (PropertyIds dnPropId, long newValue)

bool	SetPropertyBool (PropertyIds dnPropId, bool newValue)

bool	SetPropertyDate (PropertyIds dnPropId, TrimDateTime newValue)

bool	SetPropertyCurrency (PropertyIds dnPropId, TrimCurrency newValue)

bool	SetPropertyDecimal (PropertyIds dnPropId, TrimDecimal newValue)

bool	SetPropertyDouble (PropertyIds dnPropId, double newValue)

bool	SetPropertyUri (PropertyIds dnPropId, TrimURI newValue)

bool	ClearProperty (PropertyIds dnPropId)

object	GetProperty (PropertyIds propId)

bool	SetProperty (PropertyIds propId, object newValue)

string	GetPropertyAsString (PropertyIds propertyId, StringDisplayType propertyValueStringType, bool useHTMLEscapeChars)
	Gets a string representation of a property value in a format appropriate for a specific use. More...

bool	IsMandatory (PropertyIds propertyId)
	Gets a boolean value indication whether the specified property must have a non-NULL value for this object. More...

bool	VerifyProperty (PropertyIds propertyId, bool doMandatoryChecks)
	Verifies the value of a particular property, by cross checking it against other property values. The ErrorMessage property provides details if the verification fails. More...

bool	CanModifyProperty (PropertyIds propertyId)
	Indicates whether the current user has the permission to modify the specified property. More...

Properties
int	ActivityId `[get]`
	Gets the integer value which uniquely identifies this activity within this workflow or template. More...

Priority	ActivityPriority `[get, set]`
	Gets or sets a piPriority enum value indicating the priority of this Activity. More...

TrimCurrency	ActualCost `[get, set]`
	Gets or sets a currency value indicating the actual cost of completing this activity. More...

long	ActualDuration `[get, set]`
	Gets or sets an integer containing the actual duration of this activity. This indicates the amount of time that was actually taken to complete this activity. The Activity has been completed if the activity.IsComplete property has the value 'true'. More...

Location?	AssignedBy `[get]`
	Gets a location object representing the user responsible for allocating the current assignee for this activity. More...

Location?	AssignedTo `[get, set]`
	Gets or sets the location that is responsible for completing this activity. More...

bool	AutoComplete `[get, set]`
	Gets or sets a boolean value indicating whether to automatically complete this activity once started More...

Location?	CompletedBy `[get]`
	Gets or sets the location that actually completed this activity. More...

bool	CompletedOnTime `[get]`
	Gets a boolean value indicating whether this activity has been completed and was completed before the due date. More...

TrimDateTime	DateAssigned `[get]`
	Gets the date this activity was assigned to the current assignee. More...

TrimDateTime	DateAuthorized `[get]`
	Gets a datetime value indicating when this activity was fully authorized. If this activity has no authorization, this property and 'completed' will have the same value. More...

TrimDateTime	DateCompleted `[get, set]`
	Gets or sets the date this activity was completed, if it has been completed. Note that only a workflow administrator can change a completion date, and only if it is not blank. More...

TrimDateTime	DateDue `[get]`
	Gets the date this activity is due for completion. More...

TrimDateTime	DateEarliestStart `[get]`
	Gets the earliest date on which this activity may be started, based on the quickest available path for completion. More...

TrimDateTime	DateLatestStart `[get]`
	Gets the latest date by which this activity should be started. This date is calculated based on the workflow taking the longest path to completion. More...

TrimDateTime	DateSkipped `[get]`
	Gets a datetime value indicating when this activity was skipped. More...

TrimDateTime	DateStarted `[get, set]`
	Gets or sets the date and time this activity was started. More...

TrimDateTime	DateSuspended `[get]`
	Gets a datetime value indicating that this activity is suspended. More...

TrimDateTime	DateSuspendedUntil `[get]`
	Gets a datetime value indicating when this activity is due to resume. More...

WorkflowTemplate?	DerivedFromTemplate `[get]`
	Gets the workflow template object which this activity was derived from. Only applicable for an activity within a workflow (and not a template). More...

bool	EmailAssigned `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is assigned to a location. More...

bool	EmailAuthorizable `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is ready for authorization. More...

bool	EmailCompleted `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is completed. More...

bool	EmailCurrent `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is ready to start. More...

bool	EmailEscalated `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is escalated to a location. More...

bool	EmailOverdue `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity becomes overdue. More...

bool	EmailReassigned `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is reassigned to a location. More...

bool	EmailSkipped `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is skipped. More...

bool	EmailUndone `[get, set]`
	Gets or sets a boolean value indicating whether an email notification will be sent when this activity is undone (ie changed from complete to incomplete). More...

Location?	EscalatedTo `[get]`
	Gets the location object that the activity has been escalated to, if it has been escalated. More...

TrimCurrency	EstimatedCost `[get, set]`
	Gets or sets a currency value indicating the estimated cost of competing this activity. More...

long	EstimatedDuration `[get, set]`
	Gets or sets an integer containing the originally designed expected duration of this activity in seconds. More...

bool	HasSubActivities `[get]`
	Gets an boolean value indicating if this activity has any sub activities. More...

bool	IsComplete `[get]`
	Gets a boolean value indicating whether this activity has been completed. More...

bool	IsLastActivity `[get]`
	Gets a boolean value indicating whether this is the last activity within this level of activities. More...

bool	IsOverdue `[get]`
	Gets a boolean value indicating whether this activity has not been completed, and is beyond its due date. More...

bool	IsReadyToStart `[get]`
	Gets a Boolean value indicating whether this activity is ready to start. This Activity will be ready to start when all its start conditions are met. More...

bool	IsStartActivity `[get]`
	Gets a Boolean value indicating whether this activity is the first activity in the Workflow. More...

new string	Name `[get, set]`
	Gets or sets a string containing the name of this activity. More...

string	NormalRect `[get, set]`
	Gets or sets the Activity's normal view window size and position information. More...

Location?	OriginalAssignee `[get]`
	Gets the location object that was initially assigned to this activity. More...

string	OutlineRect `[get, set]`
	Gets or sets the Activity's outline view window size and position information. More...

int	OverdueReminderInterval `[get, set]`
	Gets or sets a number property to indicate whether to send an overdue reminder mail after a certain number of days. 0 indicates to not send overdue reminder email. More...

int	ParentActivityId `[get]`
	Gets the integer value containing the id number of the parent activity to this activity, if this activity is a subordinate activity. If there is no parent activity, this property has the value '0'. More...

int	PercentComplete `[get, set]`
	Gets or sets an integer between 0 and 100 indicating the percentage of this activity that is complete. This gives an indication of the progress of the Activity. More...

string	ReasonForSuspension `[get]`
	Gets a string value containing the reason for the current suspension. More...

bool	RequiresAuthorization `[get, set]`
	Gets or sets a boolean value indicating whether this activity requires authorization before. it can be considered finally complete. More...

string	Result `[get]`
	Gets a string representing the result of processing this activity. More...

long	ScheduledDuration `[get, set]`
	Gets an integer containing the expected duration of this activity in seconds. This is the same as the estimated duration. More...

bool	SingleResultOnly `[get, set]`
	Gets or sets a boolean property to indicate that only a single result can be selected for the available list of results when completing this activity. More...

ActivityStates	State `[get]`
	Gets a enum value indicating the progress state of this activity. More...

Location?	Supervisor `[get, set]`
	Gets or sets the location that is responsible for supervising the progress of this activity. More...

Location?	SuspendedBy `[get]`
	Gets the location that suspended this activity. More...

WorkflowTemplate?	Template `[get]`
	Gets the workflow template object which this activity belongs to. An activity belongs to either a workflow or a workflow template. More...

long	TotalSuspensionDuration `[get]`
	Gets an integer containing the total number of seconds this activity was suspended. More...

bool	UseAdvancedCompletionWizard `[get, set]`
	Gets or sets a boolean value indicating whether to include all steps in completion wizard. More...

bool	WasSkipped `[get]`
	Gets a boolean value indicating whether this activity was skipped because of a preceding activity not having an apprpriate result More...

bool	WithinTemplate `[get]`
	Gets a boolean value indicating whether this activity is within a workflow template. More...

Workflow?	Workflow `[get]`
	Gets the workflow object which this activity belongs to. An activity belongs to either a workflow or a workflow template. More...

ActivityAuthorizations	ChildAuthorizations `[get]`
	Get the list of Authorizations More...

ActivityDocuments	ChildDocuments `[get]`
	Get the list of Documents More...

ActivityEmailRecipients	ChildEmailRecipients `[get]`
	Get the list of Email Recipients More...

ActivityEscalations	ChildEscalations `[get]`
	Get the list of Escalations More...

ActivityResults	ChildResults `[get]`
	Get the list of Results More...

ActivityStartConditions	ChildStartConditions `[get]`
	Get the list of Start Conditions More...

int	SubActivityCount `[get]`
	Gets an integer value indicating the number of sub activities within this activity. More...

bool	CanModifyExistingNotes `[get]`

bool	CanAddToNotes `[get]`

string	Notes `[get, set]`

TrimAccessControlList?	AccessControlList `[get, set]`

Properties inherited from TRIM.SDK.TrimMainObject
TrimDateTime	LastUpdatedOn `[get]`
	Returns the date and time that changes to this object were last committed. More...

Location?	LastUpdatedBy `[get]`
	Returns the user that committed the most recent change to this object. More...

string	Name `[get]`
	Gets a string name for this object which is a user-friendly way of displaying this object. For most TRIM objects the name is a unique string, although some times this is not the case (eg Location Names). More...

bool	Verified `[get]`
	Gets a Boolean value indicating whether the object has been verified. That is, whether a call to the 'Verify' method has been made and has succeeded. More...

string	WebURL `[get]`

bool	IsInFavorites `[get]`
	Gets a boolean value indicating whether this object is in the current user's list of favorites More...

string	UpdateComment `[get, set]`
	Gets or sets a string value to be recorded with any audit entries related to the update of this object More...

Properties inherited from TRIM.SDK.TrimObject
BaseObjectTypes	TrimType `[get]`
	Gets a BaseObjectTypes enum value indicating the type of this object. More...

TrimURI	Uri `[get]`
	Gets the unique row identifier for this object. Once an object has been committed to the database, typically by calling a Save method, this unique identifier is allocated. From that time on, the uri will remain constant and can never be changed. It is always unique across all objects of the same Type. More...

string	URN `[get]`
	Gets the uniform resource name for this object. More...

string	NameString `[get]`
	Gets a string name for this object which is a user-friendly way of displaying this object. For most TRIM objects the name is a unique string, although some times this is not the case (eg Location Names). More...

string	NameStringExtra `[get]`
	Gets a more verbose description of this object, particularly when the name is perhaps a little cryptic or not enough to fully describe the object. More...

bool	IsReadOnly `[get]`
	Gets a boolean parameter indicating if this object is "ReadOnly". This would generally indicate that none of the object's properties could be modified, in some cases there are exceptions that can be tested via CanModifyProperty method. More...

bool	PossiblyHasSubordinates `[get]`
	Indicates if this object could possibly have child objects of the same type that can be displayed in a hierarchy. More...

Properties inherited from TRIM.SDK.TrimPropertySet
string	ErrorMessage `[get]`
	All TRIM SDK objects have an ErrorMessage property which can be used to examine any error that may have occurred in the most recent method call. More...

TrimException	Error `[get]`
	All TRIM SDK objects have an Error property which can be used to examine any error that may have occurred in the most recent method call. More...

Database	Database `[get]`
	Gets the TRIM Database object in which this object resides. All TRIM objects live within a particular TRIM database and cannot be created without one. More...

virtual string	Caption `[get]`
	Gets the user-defined caption that has been associated with all TrimPropertySets of this type. More...

virtual TrimIcon	Icon `[get]`
	Gets the icon value associated this TrimPropertySet. More...

bool	IsModified `[get]`
	Gets a boolean parameter indicating if any changes have been made to this object since it was first constructed, or last saved. More...

Properties inherited from TRIM.SDK.ITrimNotes
bool	CanModifyExistingNotes `[get]`
	Gets a boolean parameter indicating whether the current user can modify the existing notes attached to this object. More...

bool	CanAddToNotes `[get]`
	Gets a boolean value indicating whether the current user can either append or prepend some text to the existing notes. More...

string	Notes `[get, set]`
	Gets or sets a string value corresponding to the notes attached to this object. More...

Properties inherited from TRIM.SDK.ITrimAccessControl
TrimAccessControlList	AccessControlList `[get, set]`
	Gets or sets the access control list attached to this object. More...

Detailed Description

An activity is the fundamental element of a workflow, and represents a unit of work to be performed by an action officer, usually within a defined time period

Constructor & Destructor Documentation

◆ Activity() [1/4]

TRIM.SDK.Activity.Activity ( )

Constructor for the Activity object, based on a supplied unique row identifier.

◆ Activity() [2/4]

TRIM.SDK.Activity.Activity	(	Database	db,
		long	activityUri
	)

Constructor for the Activity object, based on a supplied unique row identifier.

◆ Activity() [3/4]

TRIM.SDK.Activity.Activity	(	Database	db,
		TrimURI	activityUri
	)

Constructor for the Activity object based on a value for the activityName property.

◆ Activity() [4/4]

TRIM.SDK.Activity.Activity	(	Database	db,
		string	activityName
	)

Member Function Documentation

◆ Acquire()

void TRIM.SDK.Activity.Acquire ( )

Acquires this activity by assigning it to the currenlt logged in user

◆ Authorize()

void TRIM.SDK.Activity.Authorize ( )

Authorizes the completion of this activity

◆ Complete()

void TRIM.SDK.Activity.Complete ( )

Completes this activity. You must have preset any completion result, and attached records to any document placeholders as appropriate

◆ Delete()

override void TRIM.SDK.Activity.Delete ( )

virtual

Permanently removes this object and all its associated child objects from the database.

Reimplemented from TRIM.SDK.TrimMainObject.

◆ FindSubActivityById()

Activity TRIM.SDK.Activity.FindSubActivityById	(	int	lookForActivityID,
		bool	searchRecursively
	)

Gets a subordinate activity of this activity based on the activity ID.

◆ FindSubActivityByName()

Activity TRIM.SDK.Activity.FindSubActivityByName	(	string	lookForActivityName,
		bool	searchRecursively
	)

Get a subordinate activity of this activity based on the name of that activity. Returns the first activity encountered with a matching name.

◆ GetFieldValue()

UserFieldValue TRIM.SDK.Activity.GetFieldValue ( FieldDefinition userFieldType )

Gets the value of the nominated user-defined field for this object.

Implements TRIM.SDK.ITrimUserFields.

◆ GetFieldValueAsString()

string TRIM.SDK.Activity.GetFieldValueAsString	(	FieldDefinition	userFieldType,
		StringDisplayType	fieldValueStringType,
		bool	useHTMLEscapeChars
	)

Gets a string representation of a user-defined field value in a format appropriate for a specific use.

Implements TRIM.SDK.ITrimUserFields.

◆ GetSubActivity()

Activity TRIM.SDK.Activity.GetSubActivity ( int activityIndex )

Get a sub activity within this activity with the supplied index.

◆ NewSubActivity()

Activity TRIM.SDK.Activity.NewSubActivity ( )

Creates a new activity to be a sub-activity of this activity

◆ Reassign()

void TRIM.SDK.Activity.Reassign ( Location newAssignee )

Reassigns this activity to the nominated user

◆ Reject()

void TRIM.SDK.Activity.Reject ( string reasonForRejection )

Rejects the authorization of this activity

◆ Relinquish()

void TRIM.SDK.Activity.Relinquish ( )

Resets the assignee of this activity back to its original assignee

◆ Resume()

void TRIM.SDK.Activity.Resume ( )

Reverts an activity back from a suspended state

◆ Rollback()

void TRIM.SDK.Activity.Rollback	(	int	activityIdToRollbackTo,
		string	reasonForRollback
	)

Reverts workflow processing back to a preceding activity, resetting completed state to incomplete for all activities involved

◆ Save()

override void TRIM.SDK.Activity.Save ( )

virtual

Permanently commits all changes made to this object (and all its child objects). For new objects a new unique identifier will be allocated (Uri).

Reimplemented from TRIM.SDK.TrimMainObject.

◆ SetFieldValue()

void TRIM.SDK.Activity.SetFieldValue	(	FieldDefinition	userFieldType,
		UserFieldValue	newFieldValue
	)

Sets the value of the nominated user-defined field for this object.

Implements TRIM.SDK.ITrimUserFields.

◆ SetNotes()

void TRIM.SDK.Activity.SetNotes	(	string	NewNotesText,
		NotesUpdateType	TypeOfNotesUpdate
	)

Updates the notes attached to this object. Typically used when a new contibution is to be combined with the existing notes, as some users only have the privilige to add to the notes, rather than overwriting them.

Implements TRIM.SDK.ITrimNotes.

◆ Start()

void TRIM.SDK.Activity.Start ( )

Indicates that work has commenced on this activity

◆ Suspend()

void TRIM.SDK.Activity.Suspend	(	string	reasonForSuspension,
		long	durationOfSuspension
	)

Suspends work on this activity for the nominated duration - usually required when waiting for outside input.

◆ Uncomplete()

void TRIM.SDK.Activity.Uncomplete ( string reasonForSettingIncomplete )

Reverts this activity back to an uncompleted state - also used for rejecting an authorization

Property Documentation

◆ AccessControlList

TrimAccessControlList? TRIM.SDK.Activity.AccessControlList

getset

◆ ActivityId

int TRIM.SDK.Activity.ActivityId

get

Gets the integer value which uniquely identifies this activity within this workflow or template.

◆ ActivityPriority

Priority TRIM.SDK.Activity.ActivityPriority

getset

Gets or sets a piPriority enum value indicating the priority of this Activity.

◆ ActualCost

TrimCurrency TRIM.SDK.Activity.ActualCost

getset

Gets or sets a currency value indicating the actual cost of completing this activity.

◆ ActualDuration

long TRIM.SDK.Activity.ActualDuration

getset

Gets or sets an integer containing the actual duration of this activity. This indicates the amount of time that was actually taken to complete this activity. The Activity has been completed if the activity.IsComplete property has the value 'true'.

◆ AssignedBy

Location? TRIM.SDK.Activity.AssignedBy

get

Gets a location object representing the user responsible for allocating the current assignee for this activity.

◆ AssignedTo

Location? TRIM.SDK.Activity.AssignedTo

getset

Gets or sets the location that is responsible for completing this activity.

◆ AutoComplete

bool TRIM.SDK.Activity.AutoComplete

getset

Gets or sets a boolean value indicating whether to automatically complete this activity once started

◆ CanAddToNotes

bool TRIM.SDK.Activity.CanAddToNotes

get

◆ CanModifyExistingNotes

bool TRIM.SDK.Activity.CanModifyExistingNotes

get

◆ ChildAuthorizations

ActivityAuthorizations TRIM.SDK.Activity.ChildAuthorizations

get

Get the list of Authorizations

◆ ChildDocuments

ActivityDocuments TRIM.SDK.Activity.ChildDocuments

get

Get the list of Documents

◆ ChildEmailRecipients

ActivityEmailRecipients TRIM.SDK.Activity.ChildEmailRecipients

get

Get the list of Email Recipients

◆ ChildEscalations

ActivityEscalations TRIM.SDK.Activity.ChildEscalations

get

Get the list of Escalations

◆ ChildResults

ActivityResults TRIM.SDK.Activity.ChildResults

get

Get the list of Results

◆ ChildStartConditions

ActivityStartConditions TRIM.SDK.Activity.ChildStartConditions

get

Get the list of Start Conditions

◆ CompletedBy

Location? TRIM.SDK.Activity.CompletedBy

get

Gets or sets the location that actually completed this activity.

◆ CompletedOnTime

bool TRIM.SDK.Activity.CompletedOnTime

get

Gets a boolean value indicating whether this activity has been completed and was completed before the due date.

◆ DateAssigned

TrimDateTime TRIM.SDK.Activity.DateAssigned

get

Gets the date this activity was assigned to the current assignee.

◆ DateAuthorized

TrimDateTime TRIM.SDK.Activity.DateAuthorized

get

Gets a datetime value indicating when this activity was fully authorized. If this activity has no authorization, this property and 'completed' will have the same value.

◆ DateCompleted

TrimDateTime TRIM.SDK.Activity.DateCompleted

getset

Gets or sets the date this activity was completed, if it has been completed. Note that only a workflow administrator can change a completion date, and only if it is not blank.

◆ DateDue

TrimDateTime TRIM.SDK.Activity.DateDue

get

Gets the date this activity is due for completion.

◆ DateEarliestStart

TrimDateTime TRIM.SDK.Activity.DateEarliestStart

get

Gets the earliest date on which this activity may be started, based on the quickest available path for completion.

◆ DateLatestStart

TrimDateTime TRIM.SDK.Activity.DateLatestStart

get

Gets the latest date by which this activity should be started. This date is calculated based on the workflow taking the longest path to completion.

◆ DateSkipped

TrimDateTime TRIM.SDK.Activity.DateSkipped

get

Gets a datetime value indicating when this activity was skipped.

◆ DateStarted

TrimDateTime TRIM.SDK.Activity.DateStarted

getset

Gets or sets the date and time this activity was started.

◆ DateSuspended

TrimDateTime TRIM.SDK.Activity.DateSuspended

get

Gets a datetime value indicating that this activity is suspended.

◆ DateSuspendedUntil

TrimDateTime TRIM.SDK.Activity.DateSuspendedUntil

get

Gets a datetime value indicating when this activity is due to resume.

◆ DerivedFromTemplate

WorkflowTemplate? TRIM.SDK.Activity.DerivedFromTemplate

get

Gets the workflow template object which this activity was derived from. Only applicable for an activity within a workflow (and not a template).

◆ EmailAssigned

bool TRIM.SDK.Activity.EmailAssigned

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is assigned to a location.

◆ EmailAuthorizable

bool TRIM.SDK.Activity.EmailAuthorizable

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is ready for authorization.

◆ EmailCompleted

bool TRIM.SDK.Activity.EmailCompleted

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is completed.

◆ EmailCurrent

bool TRIM.SDK.Activity.EmailCurrent

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is ready to start.

◆ EmailEscalated

bool TRIM.SDK.Activity.EmailEscalated

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is escalated to a location.

◆ EmailOverdue

bool TRIM.SDK.Activity.EmailOverdue

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity becomes overdue.

◆ EmailReassigned

bool TRIM.SDK.Activity.EmailReassigned

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is reassigned to a location.

◆ EmailSkipped

bool TRIM.SDK.Activity.EmailSkipped

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is skipped.

◆ EmailUndone

bool TRIM.SDK.Activity.EmailUndone

getset

Gets or sets a boolean value indicating whether an email notification will be sent when this activity is undone (ie changed from complete to incomplete).

◆ EscalatedTo

Location? TRIM.SDK.Activity.EscalatedTo

get

Gets the location object that the activity has been escalated to, if it has been escalated.

◆ EstimatedCost

TrimCurrency TRIM.SDK.Activity.EstimatedCost

getset

Gets or sets a currency value indicating the estimated cost of competing this activity.

◆ EstimatedDuration

long TRIM.SDK.Activity.EstimatedDuration

getset

Gets or sets an integer containing the originally designed expected duration of this activity in seconds.

◆ HasSubActivities

bool TRIM.SDK.Activity.HasSubActivities

get

Gets an boolean value indicating if this activity has any sub activities.

◆ IsComplete

bool TRIM.SDK.Activity.IsComplete

get

Gets a boolean value indicating whether this activity has been completed.

◆ IsLastActivity

bool TRIM.SDK.Activity.IsLastActivity

get

Gets a boolean value indicating whether this is the last activity within this level of activities.

◆ IsOverdue

bool TRIM.SDK.Activity.IsOverdue

get

Gets a boolean value indicating whether this activity has not been completed, and is beyond its due date.

◆ IsReadyToStart

bool TRIM.SDK.Activity.IsReadyToStart

get

Gets a Boolean value indicating whether this activity is ready to start. This Activity will be ready to start when all its start conditions are met.

◆ IsStartActivity

bool TRIM.SDK.Activity.IsStartActivity

get

Gets a Boolean value indicating whether this activity is the first activity in the Workflow.

◆ Name

new string TRIM.SDK.Activity.Name

getset

Gets or sets a string containing the name of this activity.

◆ NormalRect

string TRIM.SDK.Activity.NormalRect

getset

Gets or sets the Activity's normal view window size and position information.

◆ Notes

string TRIM.SDK.Activity.Notes

getset

◆ OriginalAssignee

Location? TRIM.SDK.Activity.OriginalAssignee

get

Gets the location object that was initially assigned to this activity.

◆ OutlineRect

string TRIM.SDK.Activity.OutlineRect

getset

Gets or sets the Activity's outline view window size and position information.

◆ OverdueReminderInterval

int TRIM.SDK.Activity.OverdueReminderInterval

getset

Gets or sets a number property to indicate whether to send an overdue reminder mail after a certain number of days. 0 indicates to not send overdue reminder email.

◆ ParentActivityId

int TRIM.SDK.Activity.ParentActivityId

get

Gets the integer value containing the id number of the parent activity to this activity, if this activity is a subordinate activity. If there is no parent activity, this property has the value '0'.

◆ PercentComplete

int TRIM.SDK.Activity.PercentComplete

getset

Gets or sets an integer between 0 and 100 indicating the percentage of this activity that is complete. This gives an indication of the progress of the Activity.

◆ ReasonForSuspension

string TRIM.SDK.Activity.ReasonForSuspension

get

Gets a string value containing the reason for the current suspension.

◆ RequiresAuthorization

bool TRIM.SDK.Activity.RequiresAuthorization

getset

Gets or sets a boolean value indicating whether this activity requires authorization before. it can be considered finally complete.

◆ Result

string TRIM.SDK.Activity.Result

get

Gets a string representing the result of processing this activity.

◆ ScheduledDuration

long TRIM.SDK.Activity.ScheduledDuration

getset

Gets an integer containing the expected duration of this activity in seconds. This is the same as the estimated duration.

◆ SingleResultOnly

bool TRIM.SDK.Activity.SingleResultOnly

getset

Gets or sets a boolean property to indicate that only a single result can be selected for the available list of results when completing this activity.

◆ State

ActivityStates TRIM.SDK.Activity.State

get

Gets a enum value indicating the progress state of this activity.

◆ SubActivityCount

int TRIM.SDK.Activity.SubActivityCount

get

Gets an integer value indicating the number of sub activities within this activity.

◆ Supervisor

Location? TRIM.SDK.Activity.Supervisor

getset

Gets or sets the location that is responsible for supervising the progress of this activity.

◆ SuspendedBy

Location? TRIM.SDK.Activity.SuspendedBy

get

Gets the location that suspended this activity.

◆ Template

WorkflowTemplate? TRIM.SDK.Activity.Template

get

Gets the workflow template object which this activity belongs to. An activity belongs to either a workflow or a workflow template.

◆ TotalSuspensionDuration

long TRIM.SDK.Activity.TotalSuspensionDuration

get

Gets an integer containing the total number of seconds this activity was suspended.

◆ UseAdvancedCompletionWizard

bool TRIM.SDK.Activity.UseAdvancedCompletionWizard

getset

Gets or sets a boolean value indicating whether to include all steps in completion wizard.

◆ WasSkipped

bool TRIM.SDK.Activity.WasSkipped

get

Gets a boolean value indicating whether this activity was skipped because of a preceding activity not having an apprpriate result

◆ WithinTemplate

bool TRIM.SDK.Activity.WithinTemplate

get

Gets a boolean value indicating whether this activity is within a workflow template.

◆ Workflow

Workflow? TRIM.SDK.Activity.Workflow

get

Gets the workflow object which this activity belongs to. An activity belongs to either a workflow or a workflow template.

Public Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ Activity() [1/4]

◆ Activity() [2/4]

◆ Activity() [3/4]

◆ Activity() [4/4]

Member Function Documentation

◆ Acquire()

◆ Authorize()

◆ Complete()

◆ Delete()

◆ FindSubActivityById()

◆ FindSubActivityByName()

◆ GetFieldValue()

◆ GetFieldValueAsString()

◆ GetSubActivity()

◆ NewSubActivity()

◆ Reassign()

◆ Reject()

◆ Relinquish()

◆ Resume()

◆ Rollback()

◆ Save()

◆ SetFieldValue()

◆ SetNotes()

◆ Start()

◆ Suspend()

◆ Uncomplete()

Property Documentation

◆ AccessControlList

◆ ActivityId

◆ ActivityPriority

◆ ActualCost

◆ ActualDuration

◆ AssignedBy

◆ AssignedTo

◆ AutoComplete

◆ CanAddToNotes

◆ CanModifyExistingNotes

◆ ChildAuthorizations

◆ ChildDocuments

◆ ChildEmailRecipients

◆ ChildEscalations

◆ ChildResults

◆ ChildStartConditions

◆ CompletedBy

◆ CompletedOnTime

◆ DateAssigned

◆ DateAuthorized

◆ DateCompleted

◆ DateDue

◆ DateEarliestStart

◆ DateLatestStart

◆ DateSkipped

◆ DateStarted

◆ DateSuspended

◆ DateSuspendedUntil

◆ DerivedFromTemplate

◆ EmailAssigned

◆ EmailAuthorizable

◆ EmailCompleted

◆ EmailCurrent

◆ EmailEscalated

◆ EmailOverdue

◆ EmailReassigned

◆ EmailSkipped

◆ EmailUndone

◆ EscalatedTo

◆ EstimatedCost

◆ EstimatedDuration

◆ HasSubActivities

◆ IsComplete

◆ IsLastActivity

◆ IsOverdue

◆ IsReadyToStart

◆ IsStartActivity

◆ Name

◆ NormalRect
